Setup Dual Monitors with XBMC
Lilliput 869GL-80NP/C/T 8 inch HDMI TFT-LCD VGA monitor touchscreen +DVI $195.20
2 Port HDMI Splitter 1x2 Box Full HD 1080P 1 In to 2 Out Dual Display $29.20
COOLLCD 819AH 8 inch HD LCD Field monitor with HDMI + VGA Composite $149.20


What if you have your XBMC system connected to a projector and want to listen to music?  The problem I wanted to solve was that my audiovisual system worked great for video, but not so well for music.  Having to drop the projector screen each time you want to listen to music was impractical and meant that we rarely listened to music.

The mini-ITX board (ION or SandyBridge) has a variety of outputs, but of note is the fact that there is both an HDMI and a DVI output.  The amp (which has the projector as it's output) is connected to the HDMI port, but what about connecting a much smaller screen to the DVI?

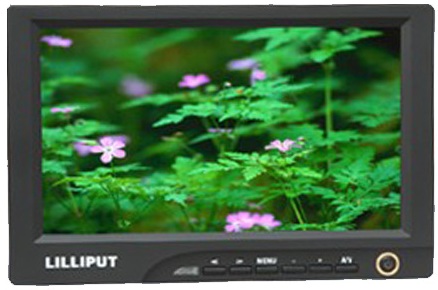

After some research I opted to spend $200 on a Lilliput 869glt - this little monitor had everything that I wanted and had a unique feature I hoped to use - a touchscreen!

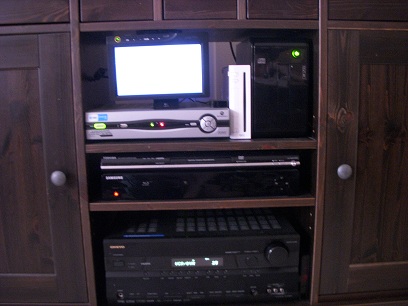

As you can see, the little screen tucked in nicely inside my system component area.  It comes with sticky tabs on the mounting bar - just leave the protective covering over the tabs and drill 4 holes instead  - it won't stay upside down for long otherwise.  What we have pictured is the Lilliput screen in an inverted position on the upper left, my HTPC is on the top right, and my amp is on the bottom.

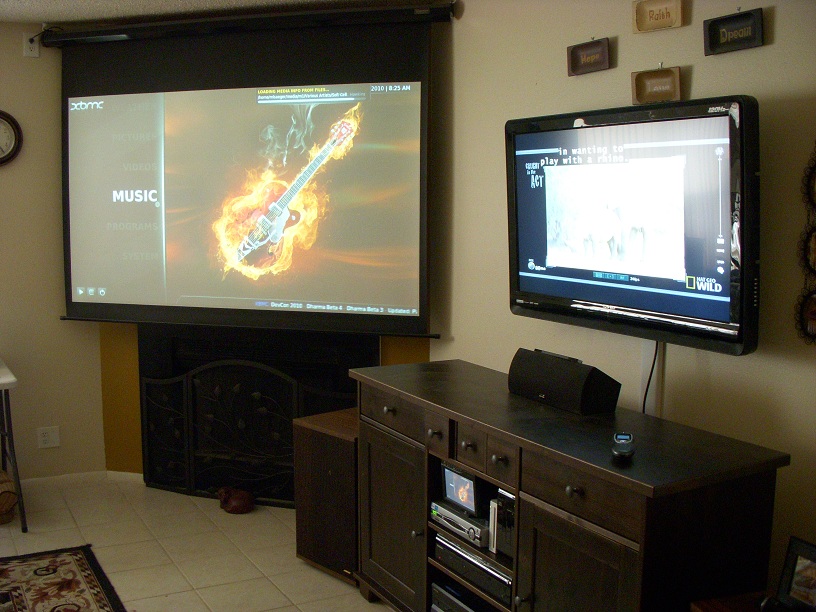

Here you can see both screens in action.  It may seem like a lot of media devices but each has it's purpose and normally all three are not on at the same time.  All controlled via a Logitech Harmony 880.
  1. Movies - are watched on the projector screen at night.  You can stream movies via the XBMC interface, or watch them from the Blu-ray player.  Not only do you get to enjoy the movie on an 84", 16:9 widescreen projector (Benq W500 - 720p, Elitescreens Spectrum Electric Screen), I also have a 7.1 surround setup (Onkyo TX-SR606) which enveopes you in the sounds of the movie.
  2. TV - is watched on the LCD during the day - you have plenty of light and it's easy on the eyes.  Nothing fancy, just a 55" TV.
  3. Audio - the small Lilliput screen is used to drive the audio capabilities of XBMC - all of your CD's/MP3's at your fingertips, easily accessible from the small 8" screen.
  4. (optional) Using the 2 port HDMI splitter you can easily run the same 1080p signal from the amp (which has a single HDMI out) to both the projector and TV.  Even though this makes the cable run to the projector longer, the powered splitter delivers enough juice to push the signal that far with no impact.  This is a great HDMI splitter that is reasonably priced.  Highly recommended!!!


So...how to get this working in Ubuntu?

Drivers for the Lilliput screen are available here: http://home.eeti.com.tw/web20/eGalaxTouchDriver/linuxDriver.htm
You can download the 32/64-bit Linux drivers and follow the simple setup script.

As you can see below, the settings are for 720p (1280x720).  I was unable to get the Lilliput to output 1080p (1920x1080).  As it turns out, the problem was actually with the input settings.  If you have the Lilliput set to DVI, then the highest resolution available is 720p; if however you set the input of the Lilliput to HDMI then you can achieve 1080p.  The only problem is the Lilliput seems unable to scale a 1080p down quite small enough to fit so the upper and lower parts of the screen are cut-off.  Not a huge problem, as your actual watching of the program will be just fine on the TV or projector.  I have presently have my system running 1080p and will update the below screenshots and xorg.conf sometime when I get time.

I was unsuccessful in getting the touchscreen portion to work in XBMC.  By installing the driver, I was able to get the touchscreen to work in Ubuntu, however it wasn't the most accurate of devices.

Update: Well, my Lilliput screen bit the dust (text was mirrored).  Looking it up online, it sounded like a fuse had blown - so I popped the screen apart (voiding the warranty) and it wasn't the fuse.  As it turns out, coollcd.com warrants the product for 2 years, so I could have covered it under warranty - IF I hadn't taken it apart.  Lesson learned.  The screen was replaced with a similar screen, the COOLLCD 819AH 8" LCD.

I've included two sets of directions:
1: NVidia ION xorg.conf
2: Intel SandyBridge xorg.conf


For the NVidia ION setup with the Lilliput
HDMI - TV/Projector
DVI - Lilliput

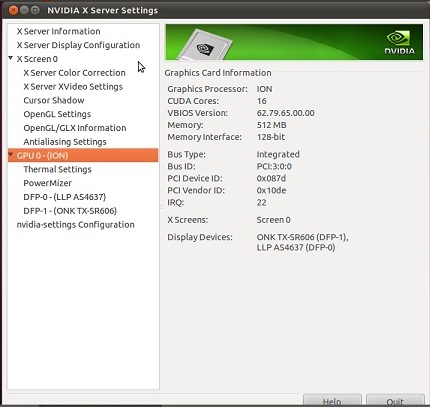

The NVIDIA control panel looks as follows:


And each screen is shown as:

nv0.jpg nv1.jpg


The next step is making sure your xorg.conf file is setup correctly.  I've included a copy of my xorg.conf file for your viewing pleasure:
---------------------------------------begin xorg.conf------------------------------------
# nvidia-settings: X configuration file generated by nvidia-settings
# nvidia-settings:  version 1.0  (buildmeister@builder58)  Thu Apr 22 20:36:15 PDT 2010

# nvidia-xconfig: X configuration file generated by nvidia-xconfig
# nvidia-xconfig:  version 1.0  (buildmeister@builder58)  Thu Apr 22 20:35:23 PDT 2010

Section "ServerLayout"
    InputDevice "EETI" "SendCoreEvents"
    Identifier     "Layout0"
    Screen      0  "Screen0" 0 0
    InputDevice    "Keyboard0" "CoreKeyboard"
    InputDevice    "Mouse0" "CorePointer"
    Option         "Xinerama" "0"
EndSection

Section "Files"
EndSection

Section "InputDevice"

    # generated from default
    Identifier     "Mouse0"
    Driver         "mouse"
    Option         "Protocol" "auto"
#    Option         "Device" "/dev/psaux"
    Option         "Device" "/dev/input/mouse0"
    Option         "Emulate3Buttons" "no"
    Option         "ZAxisMapping" "4 5"
EndSection

Section "InputDevice"

    # generated from default
    Identifier     "Keyboard0"
    Driver         "kbd"
EndSection

Section "Monitor"
    Identifier     "Monitor0"
    VendorName     "Onkyo"
    ModelName      "ONK TX-SR606"
    HorizSync       24.0 - 81.0
    VertRefresh     48.0 - 88.0
    Option         "DPMS"

    # 640x480 @ 60 Hz (EDID) HSync: 31.4625 kHz
    ModeLine "640x480" 25.17 640 656 752 800 480 490 492 525 -HSync -VSync
    # 720x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 13.50 720 739 801 858 480 488 494 524 -HSync -VSync Interlace
    # 720x480 @ 60 Hz (EDID) HSync: 31.4685 kHz
    ModeLine "720x480" 27.00 720 736 798 858 480 489 495 525 -HSync -VSync
    # 720x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 13.50 720 732 795 864 576 580 586 624 -HSync -VSync Interlace
    # 720x576 @ 50 Hz (EDID) HSync: 31.25 kHz
    ModeLine "720x576" 27.00 720 732 796 864 576 581 586 625 -HSync -VSync
    # 800x600 @ 60 Hz (EDID) HSync: 37.8788 kHz
    ModeLine "800x600" 40.00 800 840 968 1056 600 601 605 628 +HSync +VSync
    # 1024x768 @ 60 Hz (EDID) HSync: 48.3631 kHz
    ModeLine "1024x768" 65.00 1024 1048 1184 1344 768 771 777 806 -HSync -VSync
    # 1280x720 @ 50 Hz (EDID) HSync: 37.5 kHz
    ModeLine "1280x720" 74.25 1280 1720 1760 1980 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 44.9576 kHz
    ModeLine "1280x720" 74.18 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 45 kHz
    ModeLine "1280x720" 74.25 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x768 @ 60 Hz (EDID) HSync: 47.3958 kHz
    ModeLine "1280x768" 68.25 1280 1328 1360 1440 768 771 778 790 +HSync +VSync
    # 1280x1024 @ 60 Hz (EDID) HSync: 63.981 kHz
    ModeLine "1280x1024" 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +HSync +VSync
    # 1360x768 @ 60 Hz (EDID) HSync: 47.7121 kHz
    ModeLine "1360x768" 85.50 1360 1424 1536 1792 768 771 778 795 -HSync -VSync
    # 1440x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 27.00 1440 1478 1602 1716 480 488 494 524 -HSync -VSync Interlace
    # 1440x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 27.00 1440 1464 1590 1728 576 580 586 624 -HSync -VSync Interlace
    # 1920x1080 @ 24 Hz (EDID) HSync: 26.9673 kHz
    ModeLine "1920x1080" 74.16 1920 2558 2602 2750 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 25 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 30 Hz (EDID) HSync: 33.7159 kHz
    ModeLine "1920x1080" 89.01 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 56.25 kHz
    ModeLine "1920x1080" 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1094 1124 +HSync +VSync Interlace
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.4318 kHz
    ModeLine "1920x1080" 148.35 1920 2008 2052 2200 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.5 kHz
    ModeLine "1920x1080" 148.50 1920 2008 2052 2200 1080 1084 1088 1125 -HSync -VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 33.7182 kHz
    ModeLine "1920x1080" 74.18 1920 2008 2052 2200 1080 1084 1094 1124 +HSync +VSync Interlace

EndSection

Section "Monitor"
    Identifier     "Monitor0"
    VendorName     "Lilliput"
    ModelName      "LLP AS4637"
    HorizSync       24.0 - 80.0
    VertRefresh     56.0 - 85.0
    Option         "DPMS"

    # 640x480 @ 60 Hz (EDID) HSync: 31.4625 kHz
    ModeLine "640x480" 25.17 640 656 752 800 480 490 492 525 -HSync -VSync
    # 720x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 13.50 720 739 801 858 480 488 494 524 -HSync -VSync Interlace
    # 720x480 @ 60 Hz (EDID) HSync: 31.4685 kHz
    ModeLine "720x480" 27.00 720 736 798 858 480 489 495 525 -HSync -VSync
    # 720x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 13.50 720 732 795 864 576 580 586 624 -HSync -VSync Interlace
    # 720x576 @ 50 Hz (EDID) HSync: 31.25 kHz
    ModeLine "720x576" 27.00 720 732 796 864 576 581 586 625 -HSync -VSync
    # 800x600 @ 60 Hz (EDID) HSync: 37.8788 kHz
    ModeLine "800x600" 40.00 800 840 968 1056 600 601 605 628 +HSync +VSync
    # 1024x768 @ 60 Hz (EDID) HSync: 48.3631 kHz
    ModeLine "1024x768" 65.00 1024 1048 1184 1344 768 771 777 806 -HSync -VSync
    # 1280x720 @ 50 Hz (EDID) HSync: 37.5 kHz
    ModeLine "1280x720" 74.25 1280 1720 1760 1980 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 44.9576 kHz
    ModeLine "1280x720" 74.18 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 45 kHz
    ModeLine "1280x720" 74.25 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x768 @ 60 Hz (EDID) HSync: 47.3958 kHz
    ModeLine "1280x768" 68.25 1280 1328 1360 1440 768 771 778 790 +HSync +VSync
    # 1280x1024 @ 60 Hz (EDID) HSync: 63.981 kHz
    ModeLine "1280x1024" 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +HSync +VSync
    # 1360x768 @ 60 Hz (EDID) HSync: 47.7121 kHz
    ModeLine "1360x768" 85.50 1360 1424 1536 1792 768 771 778 795 -HSync -VSync
    # 1440x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 27.00 1440 1478 1602 1716 480 488 494 524 -HSync -VSync Interlace
    # 1440x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 27.00 1440 1464 1590 1728 576 580 586 624 -HSync -VSync Interlace
    # 1920x1080 @ 24 Hz (EDID) HSync: 26.9673 kHz
    ModeLine "1920x1080" 74.16 1920 2558 2602 2750 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 25 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 30 Hz (EDID) HSync: 33.7159 kHz
    ModeLine "1920x1080" 89.01 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 56.25 kHz
    ModeLine "1920x1080" 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1094 1124 +HSync +VSync Interlace
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.4318 kHz
    ModeLine "1920x1080" 148.35 1920 2008 2052 2200 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.5 kHz
    ModeLine "1920x1080" 148.50 1920 2008 2052 2200 1080 1084 1088 1125 -HSync -VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 33.7182 kHz
    ModeLine "1920x1080" 74.18 1920 2008 2052 2200 1080 1084 1094 1124 +HSync +VSync Interlace

EndSection

Section "Device"
    Identifier     "Device0"
    Driver         "nvidia"
    VendorName     "NVIDIA Corporation"
    BoardName      "ION"
EndSection

Section "Screen"
    Identifier     "Screen0"
    Device         "Device0"
    Monitor        "Monitor0"
    DefaultDepth    24
#    Option         "TwinView" "0"
#    Option         "metamodes" "nvidia-auto-select +0+0"

    Option         "TwinView" "1"
    Option         "TwinViewXineramaInfoOrder" "DFP-1"
#    Option         "metamodes" "DFP-0: nvidia-auto-select +0+0,DFP-1:1280x720 +0+0"
    Option         "metamodes" "DFP-0:1280x720 +0+0,DFP-1:1280x720 +0+0"

    SubSection     "Display"
        Depth       24
    EndSubSection
EndSection
### Touch Configuration Beginning ###
Section "InputDevice"
        Identifier "EETI"
        Driver "egalax"
        Option "Device" "usbauto"
        Option "Parameters" "/var/lib/eeti.param"
        Option "ScreenNo" "0"
        Option "SkipClick" "0"
EndSection
### Touch Configuration End ###

--------------------------------------- end xorg.conf ------------------------------------


For the Intel SandyBridge setup with the COOLLCD
HDMI - TV/Projector
DVI - COOLLCD
The next step is making sure your xorg.conf file is setup correctly.  I've included a copy of my xorg.conf file for your viewing pleasure:
---------------------------------------begin xorg.conf------------------------------------
Section "ServerLayout"
    Identifier     "Layout0"
    Screen      1  "Screen1" 0 0
    InputDevice    "Keyboard0" "CoreKeyboard"
    InputDevice    "Mouse0" "CorePointer"
    Option         "Xinerama" "true"
EndSection

Section "Files"
EndSection

Section "InputDevice"

    # generated from default
    Identifier     "Mouse0"
    Driver         "mouse"
    Option         "Protocol" "auto"
#    Option         "Device" "/dev/psaux"
    Option         "Device" "/dev/input/mouse0"
    Option         "Emulate3Buttons" "no"
    Option         "ZAxisMapping" "4 5"
EndSection

Section "InputDevice"

    # generated from default
    Identifier     "Keyboard0"
    Driver         "kbd"
EndSection

Section "Monitor"
    Identifier     "HDMI2"
    VendorName     "Onkyo"
    ModelName      "ONK TX-SR606"
    HorizSync       24.0 - 81.0
    VertRefresh     48.0 - 88.0
    Option         "DPMS"

    # 640x480 @ 60 Hz (EDID) HSync: 31.4625 kHz
    ModeLine "640x480" 25.17 640 656 752 800 480 490 492 525 -HSync -VSync
    # 720x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 13.50 720 739 801 858 480 488 494 524 -HSync -VSync Interlace
    # 720x480 @ 60 Hz (EDID) HSync: 31.4685 kHz
    ModeLine "720x480" 27.00 720 736 798 858 480 489 495 525 -HSync -VSync
    # 720x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 13.50 720 732 795 864 576 580 586 624 -HSync -VSync Interlace
    # 720x576 @ 50 Hz (EDID) HSync: 31.25 kHz
    ModeLine "720x576" 27.00 720 732 796 864 576 581 586 625 -HSync -VSync
    # 800x600 @ 60 Hz (EDID) HSync: 37.8788 kHz
    ModeLine "800x600" 40.00 800 840 968 1056 600 601 605 628 +HSync +VSync
    # 1024x768 @ 60 Hz (EDID) HSync: 48.3631 kHz
    ModeLine "1024x768" 65.00 1024 1048 1184 1344 768 771 777 806 -HSync -VSync
    # 1280x720 @ 50 Hz (EDID) HSync: 37.5 kHz
    ModeLine "1280x720" 74.25 1280 1720 1760 1980 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 44.9576 kHz
    ModeLine "1280x720" 74.18 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 45 kHz
    ModeLine "1280x720" 74.25 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x768 @ 60 Hz (EDID) HSync: 47.3958 kHz
    ModeLine "1280x768" 68.25 1280 1328 1360 1440 768 771 778 790 +HSync +VSync
    # 1280x1024 @ 60 Hz (EDID) HSync: 63.981 kHz
    ModeLine "1280x1024" 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +HSync +VSync
    # 1360x768 @ 60 Hz (EDID) HSync: 47.7121 kHz
    ModeLine "1360x768" 85.50 1360 1424 1536 1792 768 771 778 795 -HSync -VSync
    # 1440x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 27.00 1440 1478 1602 1716 480 488 494 524 -HSync -VSync Interlace
    # 1440x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 27.00 1440 1464 1590 1728 576 580 586 624 -HSync -VSync Interlace
    # 1920x1080 @ 24 Hz (EDID) HSync: 26.9673 kHz
    ModeLine "1920x1080" 74.16 1920 2558 2602 2750 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 25 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 30 Hz (EDID) HSync: 33.7159 kHz
    ModeLine "1920x1080" 89.01 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 56.25 kHz
    ModeLine "1920x1080" 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080i" 74.25 1920 2448 2492 2640 1080 1084 1094 1124 +HSync +VSync Interlace
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.4318 kHz
    ModeLine "1920x1080" 148.35 1920 2008 2052 2200 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.5 kHz
    ModeLine "1920x1080" 148.50 1920 2008 2052 2200 1080 1084 1088 1125 -HSync -VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 33.7182 kHz
    ModeLine "1920x1080i" 74.18 1920 2008 2052 2200 1080 1084 1094 1124 +HSync +VSync Interlace

EndSection

Section "Monitor"
    Identifier     "HDMI1"
    VendorName     "RTK"
    ModelName      "RTK 4c54"
    HorizSync       24.0 - 81.0
    VertRefresh     48.0 - 88.0
    Option         "DPMS"

    # 640x480 @ 60 Hz (EDID) HSync: 31.4625 kHz
    ModeLine "640x480" 25.17 640 656 752 800 480 490 492 525 -HSync -VSync
    # 720x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 13.50 720 739 801 858 480 488 494 524 -HSync -VSync Interlace
    # 720x480 @ 60 Hz (EDID) HSync: 31.4685 kHz
    ModeLine "720x480" 27.00 720 736 798 858 480 489 495 525 -HSync -VSync
    # 720x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 13.50 720 732 795 864 576 580 586 624 -HSync -VSync Interlace
    # 720x576 @ 50 Hz (EDID) HSync: 31.25 kHz
    ModeLine "720x576" 27.00 720 732 796 864 576 581 586 625 -HSync -VSync
    # 800x600 @ 60 Hz (EDID) HSync: 37.8788 kHz
    ModeLine "800x600" 40.00 800 840 968 1056 600 601 605 628 +HSync +VSync
    # 1024x768 @ 60 Hz (EDID) HSync: 48.3631 kHz
    ModeLine "1024x768" 65.00 1024 1048 1184 1344 768 771 777 806 -HSync -VSync
    # 1280x720 @ 50 Hz (EDID) HSync: 37.5 kHz
    ModeLine "1280x720" 74.25 1280 1720 1760 1980 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 44.9576 kHz
    ModeLine "1280x720" 74.18 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x720 @ 60 Hz (EDID) HSync: 45 kHz
    ModeLine "1280x720" 74.25 1280 1390 1430 1650 720 725 730 750 +HSync +VSync
    # 1280x768 @ 60 Hz (EDID) HSync: 47.3958 kHz
    ModeLine "1280x768" 68.25 1280 1328 1360 1440 768 771 778 790 +HSync +VSync
    # 1280x1024 @ 60 Hz (EDID) HSync: 63.981 kHz
    ModeLine "1280x1024" 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +HSync +VSync
    # 1360x768 @ 60 Hz (EDID) HSync: 47.7121 kHz
    ModeLine "1360x768" 85.50 1360 1424 1536 1792 768 771 778 795 -HSync -VSync
    # 1440x480 @ 60 Hz (EDID) HSync: 15.7343 kHz
    ModeLine "720x480" 27.00 1440 1478 1602 1716 480 488 494 524 -HSync -VSync Interlace
    # 1440x576 @ 50 Hz (EDID) HSync: 15.625 kHz
    ModeLine "720x576" 27.00 1440 1464 1590 1728 576 580 586 624 -HSync -VSync Interlace
    # 1920x1080 @ 24 Hz (EDID) HSync: 26.9673 kHz
    ModeLine "1920x1080" 74.16 1920 2558 2602 2750 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 25 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080" 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 30 Hz (EDID) HSync: 33.7159 kHz
    ModeLine "1920x1080" 89.01 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 56.25 kHz
    ModeLine "1920x1080" 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 50 Hz (EDID) HSync: 28.125 kHz
    ModeLine "1920x1080i" 74.25 1920 2448 2492 2640 1080 1084 1094 1124 +HSync +VSync Interlace
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.4318 kHz
    ModeLine "1920x1080" 148.35 1920 2008 2052 2200 1080 1084 1089 1125 +HSync +VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 67.5 kHz
    ModeLine "1920x1080" 148.50 1920 2008 2052 2200 1080 1084 1088 1125 -HSync -VSync
    # 1920x1080 @ 60 Hz (EDID) HSync: 33.7182 kHz
    ModeLine "1920x1080i" 74.18 1920 2008 2052 2200 1080 1084 1094 1124 +HSync +VSync Interlace

EndSection

Section "Device"
   Identifier      "Device0"
   Driver          "intel"
   VendorName      "Intel Corporation"
   BoardName       "SandyBridge"
EndSection

Section "Screen"
    Identifier     "Screen1"
    Device         "Device0"
    Monitor        "HDMI1"
    DefaultDepth    24
    SubSection     "Display"
        Depth       24
        Modes       "1920x1080"
    EndSubSection
EndSection

--------------------------------------- end xorg.conf ------------------------------------
